2026 Ford Maverick Bed Size, Dimensions and Cab Utility
2026 Ford Maverick Bed Size and Cargo Dimensions

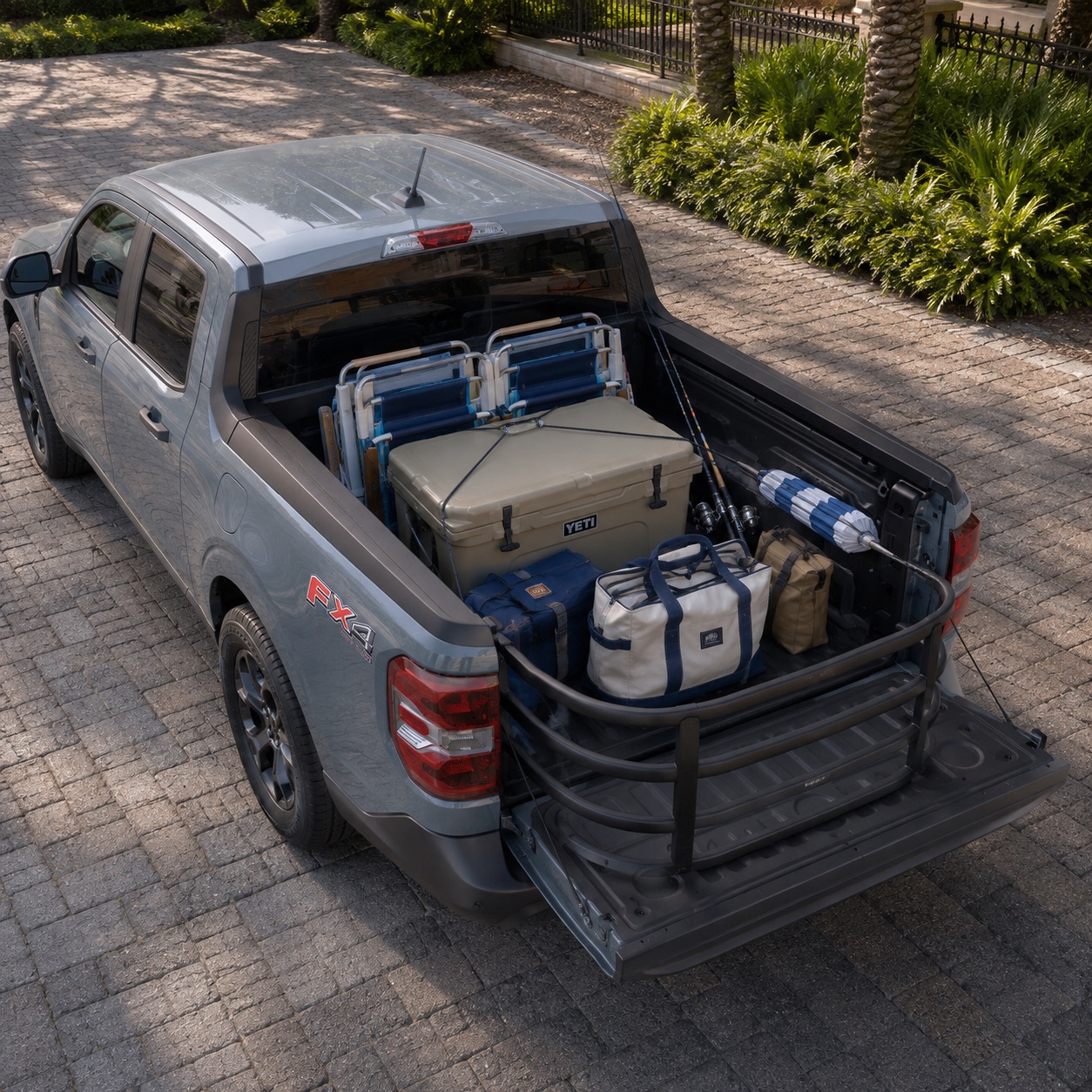

The Maverick keeps its utility decision simple: every 2026 model uses the same 54.4-inch cargo bed. You do not have to choose a different cab or sacrifice passenger space to get a different box length.
That works especially well for shoppers who need pickup-bed flexibility without moving into a larger truck. The bed is long enough for everyday hauling, home projects, equipment and recreation gear, while the compact truck footprint remains easier to work with in traffic, driveways and parking areas.
How Wide Is the 2026 Ford Maverick Bed?
The bed is 53.3 inches wide at its widest point but narrows to 42.6 inches between the wheel wells. For toolboxes, storage bins, furniture or rectangular equipment, use the narrower floor measurement when deciding whether an item will sit flat.
| Bed specification | Measurement | Why it matters |
|---|---|---|
| Bed length | 54.4 in. | Same box length across the lineup |
| Maximum width | 53.3 in. | Widest side-to-side span |
| Between wheel wells | 42.6 in. | Useful for floor-level cargo planning |
| Cargo volume | 33.3 cu. ft. | Bed volume with the tailgate fully closed |
| Lift-in height | Up to 30.4 in. | Keeps the bed floor relatively accessible for loading |
How the 2026 Ford Maverick FLEXBED Makes the Bed More Useful
Ford builds the Maverick’s FLEXBED around organization, positioning and power rather than relying on bed length alone. That gives you more ways to adapt the space for work, hobbies and weekend cargo.
Multi-Position Tailgate
Position the tailgate to better support longer material extending beyond the closed-bed length.
Integrated Tie-Downs
Secure tools, equipment and recreation gear instead of letting cargo move freely around the bed.
12-Volt Bed Access
Two pre-wired 12-volt electrical leads create a starting point for compatible bed accessories and custom setups.
Available Pro Power Onboard
Available Pro Power Onboard adds a 110-volt outlet for compatible tools, electronics and outdoor equipment.
2026 Ford Maverick Payload Capacity by Engine and Drivetrain
Bed size tells you whether your cargo physically fits. Payload tells you how much total weight the truck is rated to carry. Passengers, cargo, accessories and installed equipment all count, which is why the 1,500-pound headline figure should never be treated as universal across the lineup.
| Configuration | Maximum payload |
|---|---|
| 2.5L hybrid FWD | 1,500 lbs. |
| 2.5L hybrid AWD | 1,400 lbs. |
| 2.0L EcoBoost FWD | 1,500 lbs. |
| 2.0L EcoBoost AWD | 1,500 lbs. |
| Tremor AWD | 1,140 lbs. |
| Lobo AWD | 1,045 lbs. |
How Much Payload Can a 2026 Maverick Carry?
Hybrid FWD and standard EcoBoost configurations reach the top published rating. Hybrid AWD, Tremor and Lobo carry lower maximum payload ratings, so the right configuration depends on whether you prioritize carrying capacity, drivetrain capability, off-road hardware or street-performance tuning.
2026 Ford Maverick Cab Dimensions and Passenger Space
Every 2026 Maverick uses a four-door SuperCrew body with seating for up to five. You are not choosing between regular, extended and crew cabs. That keeps the buying decision focused on powertrain, drivetrain, payload and equipment.
The most meaningful dimensional change appears in the second row. Hybrid models provide 35.9 inches of rear legroom, while 2.0L EcoBoost, Tremor and Lobo configurations provide 36.9 inches.
For everyday use, that means you can keep people and smaller weather-sensitive items inside while leaving the FLEXBED available for tools, luggage, home-project supplies or outdoor gear.
| Cab measurement | Hybrid | EcoBoost / Tremor / Lobo |
|---|---|---|
| Front headroom | 40.2 in. | 40.2 in. |
| Rear headroom | 39.6 in. | 39.6 in. |
| Maximum front legroom | 42.8 in. | 42.8 in. |
| Rear legroom | 35.9 in. | 36.9 in. |
| Front shoulder room | 57.3 in. | 57.3 in. |
| Rear shoulder room | 55.6 in. | 55.6 in. |
2026 Ford Maverick Exterior Dimensions and Overall Length
Most 2026 Maverick configurations measure 199.8 inches long, while Tremor and Lobo extend slightly beyond 200 inches. All models use a 121.1-inch wheelbase and measure 72.6 inches wide at the door handles.
Standard Maverick Length
Maverick Tremor Length
Maverick Lobo Length
Is the Ford Maverick Easy to Fit in Everyday Parking and Garages?
That roughly 200-inch footprint is part of the Maverick’s utility story. You still get a separate open cargo bed and a usable second row without moving into the size of a traditional full-size pickup. For Savannah-area driving, that gives the Maverick an advantage when your routine includes tighter parking, garages, city streets and frequent daily errands.
Ford lists the truck at 83.5 inches wide including the outside mirrors and 77.9 inches with the mirrors folded. Garage and parking dimensions vary, so measure the actual opening, usable depth and available clearance before assuming a particular space will fit.
Which 2026 Ford Maverick Configuration Fits Your Utility Needs?
Because every Maverick shares the same basic bed and SuperCrew cab layout, the biggest utility differences come from the powertrain, drivetrain and specialized equipment you choose.
Maverick Hybrid FWD
Choose it when hybrid efficiency and the full 1,500-pound maximum published payload matter more than AWD.
Maverick Hybrid AWD
Choose it when you want the hybrid powertrain with added drivetrain capability and can work within the 1,400-pound maximum payload rating.
Maverick EcoBoost
Choose it when the 2.0L turbocharged powertrain and up to 1,500 pounds of payload fit your work, recreation or everyday hauling priorities.
Maverick Tremor or Lobo
Choose between specialized off-road or street-performance hardware with the understanding that both carry lower published maximum payload ratings.
Compare 2025 and 2026 Ford Maverick Dimensions
We keep model-year research separate so the measurements stay clear. Use our 2025 Ford Maverick bed size and dimensions guide when you are comparing a 2025 truck, then use this page for the current 2026 specifications.
2026 Ford Maverick Bed Size, Dimensions and Payload FAQs
Get quick answers about the 2026 Ford Maverick bed length, FLEXBED utility, payload capacity, SuperCrew passenger space and overall dimensions before you compare configurations.
What Matters When You Compare Maverick Utility
The Maverick uses one bed and one SuperCrew cab layout across the 2026 lineup, but drivetrain and model choices change payload capacity, rear-seat space and overall dimensions.
Every 2026 Maverick uses a 54.4-inch bed with 33.3 cubic feet of cargo volume, so you can focus on how the FLEXBED organization features fit the cargo you carry.
Maximum payload ranges from 1,045 to 1,500 pounds depending on configuration, making the exact powertrain and drivetrain important when hauling capacity is a priority.
At J.C. Lewis Ford Savannah, we can put the measurements into context by letting you compare the bed, rear seat and available Maverick configurations in person.
Find the Right 2026 Ford Maverick at J.C. Lewis Ford Savannah
Measurements narrow down the right truck. Seeing the bed, opening the rear doors and comparing configurations makes the final decision easier. At J.C. Lewis Ford Savannah, we’ll walk through the cargo space, passenger room, drivetrain and payload differences with you so you can choose the Maverick that fits what you actually carry and where you actually drive.
More Ford Shopping Resources
Vehicle dimensions and capacities are manufacturer-reported and may vary with trim, drivetrain, equipment, accessories, tires, production changes and vehicle configuration.
Payload ratings are maximum values and vary with vehicle configuration, installed equipment, accessories, passengers and cargo. Verify the payload information for the exact vehicle before loading.
Garage, parking and cargo-fit examples are general planning guidance only. Measure the actual vehicle, cargo and available space before relying on dimensional fit.
